Mechanica Group | Stringing Equipments
Mechanica’s Stringing Equipment range supports transmission line installation with durable aerial rollers, clamping systems, headboards, pulley arrangements, reel handling equipment, and site accessories designed for dependable on-ground performance.
Overview
This division covers the essential handling and support equipment used through conductor stringing operations, from aerial guidance and pulling support to gripping, drum control, headboard connection, and protection of joints in demanding field conditions.
The product line combines cast components, welded steel structures, precision-machined elements, and rugged surface protection so each unit performs reliably under repeated site use.
Aerial Roller Range

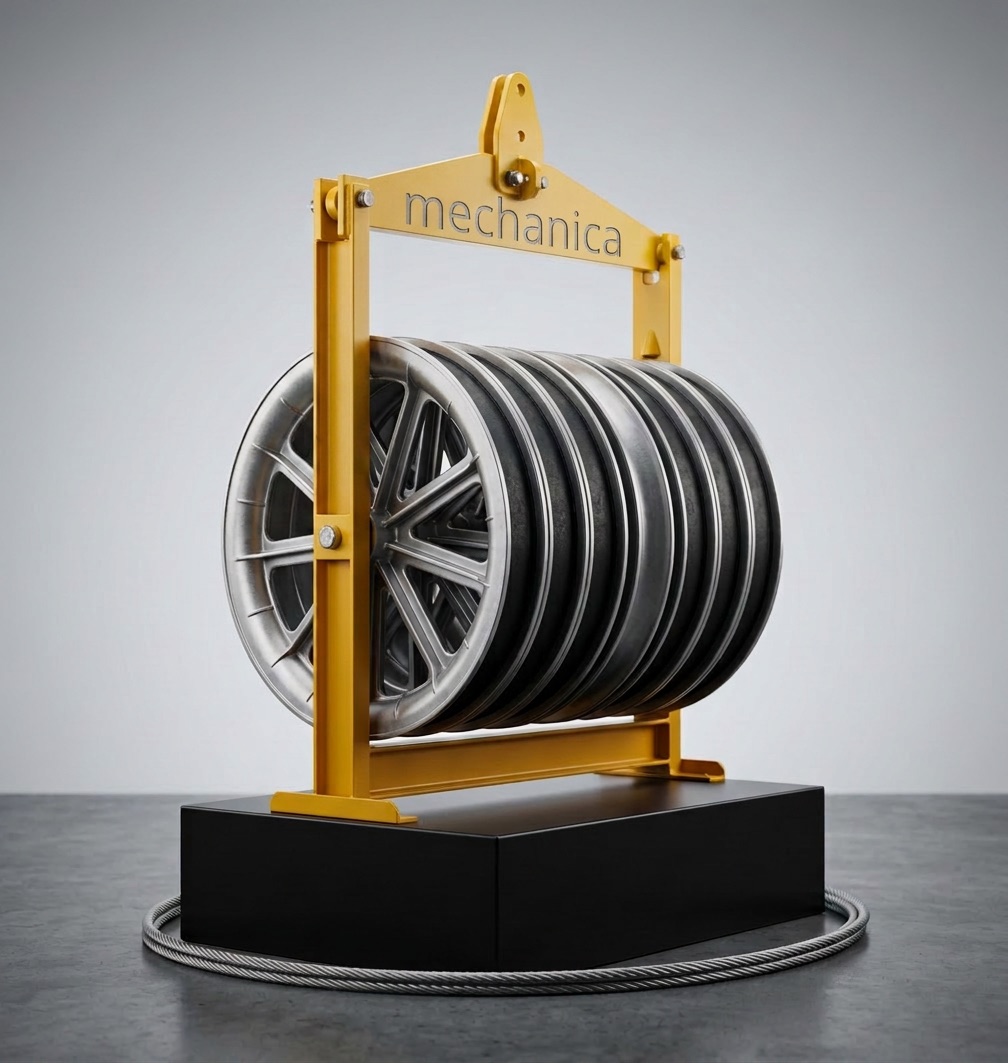

Gravity die cast aluminium alloy sheaves on sealed ball bearings, grooved with neoprene or rubber flaps for conductor protection. Mounted on a robust steel frame and designed for stringing six bundled conductors, with a reinforced central roller for carrying the load.

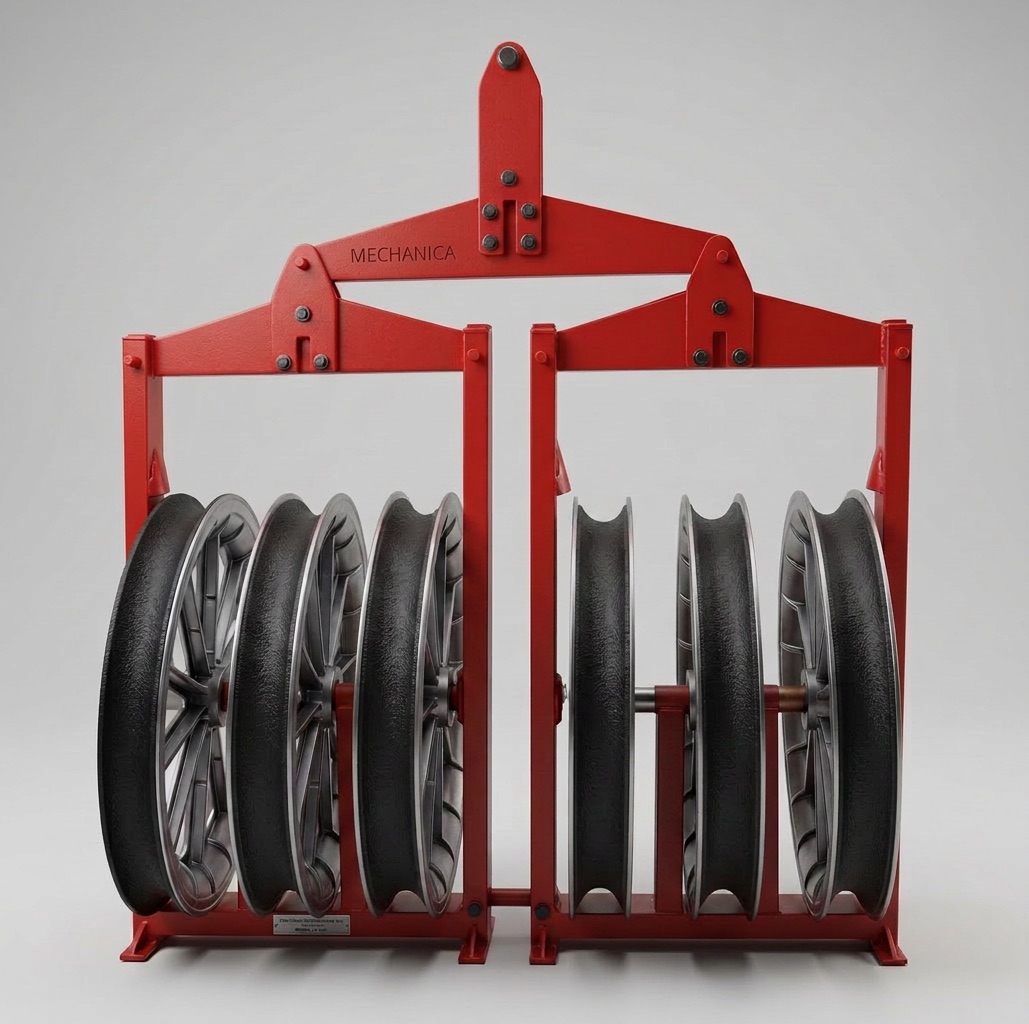

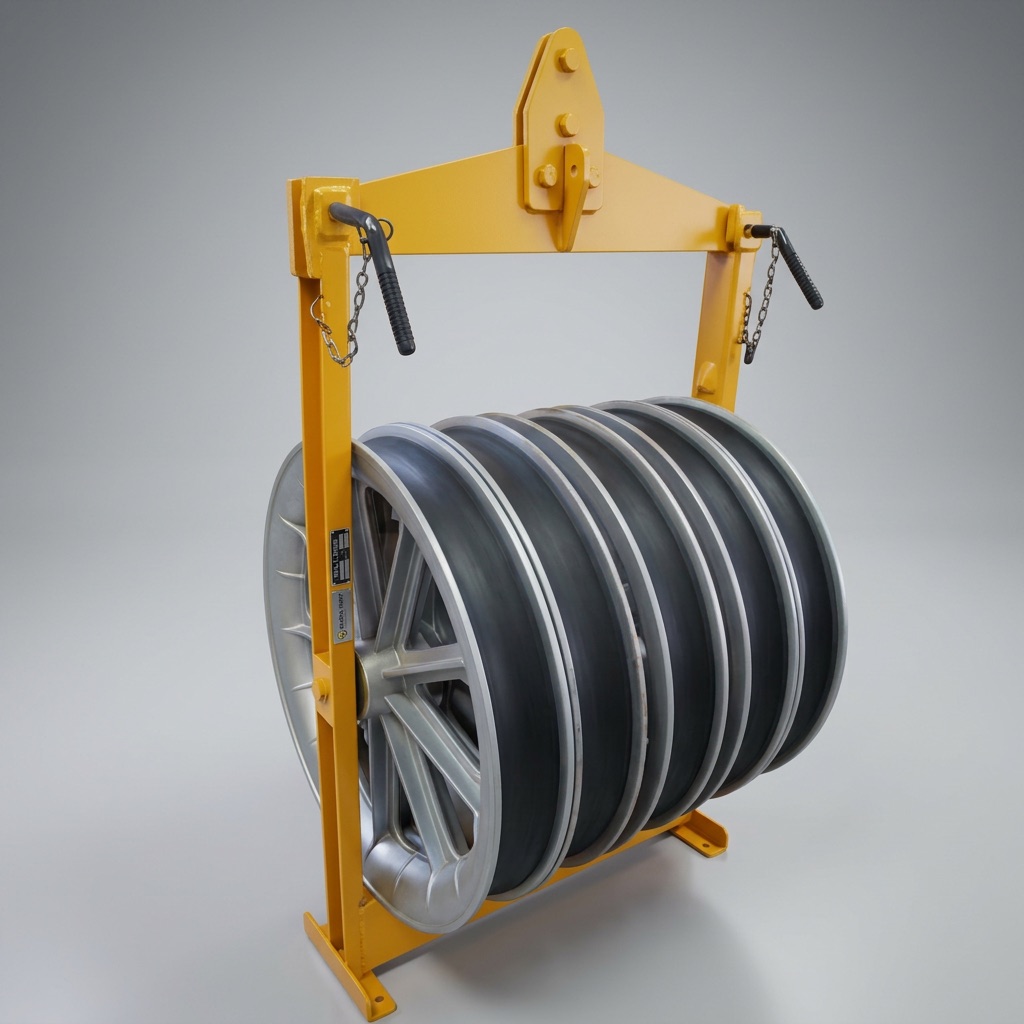

Built on a sturdy 3+3 steel frame arrangement and suited for stringing six bundled conductors with two pilot wires.

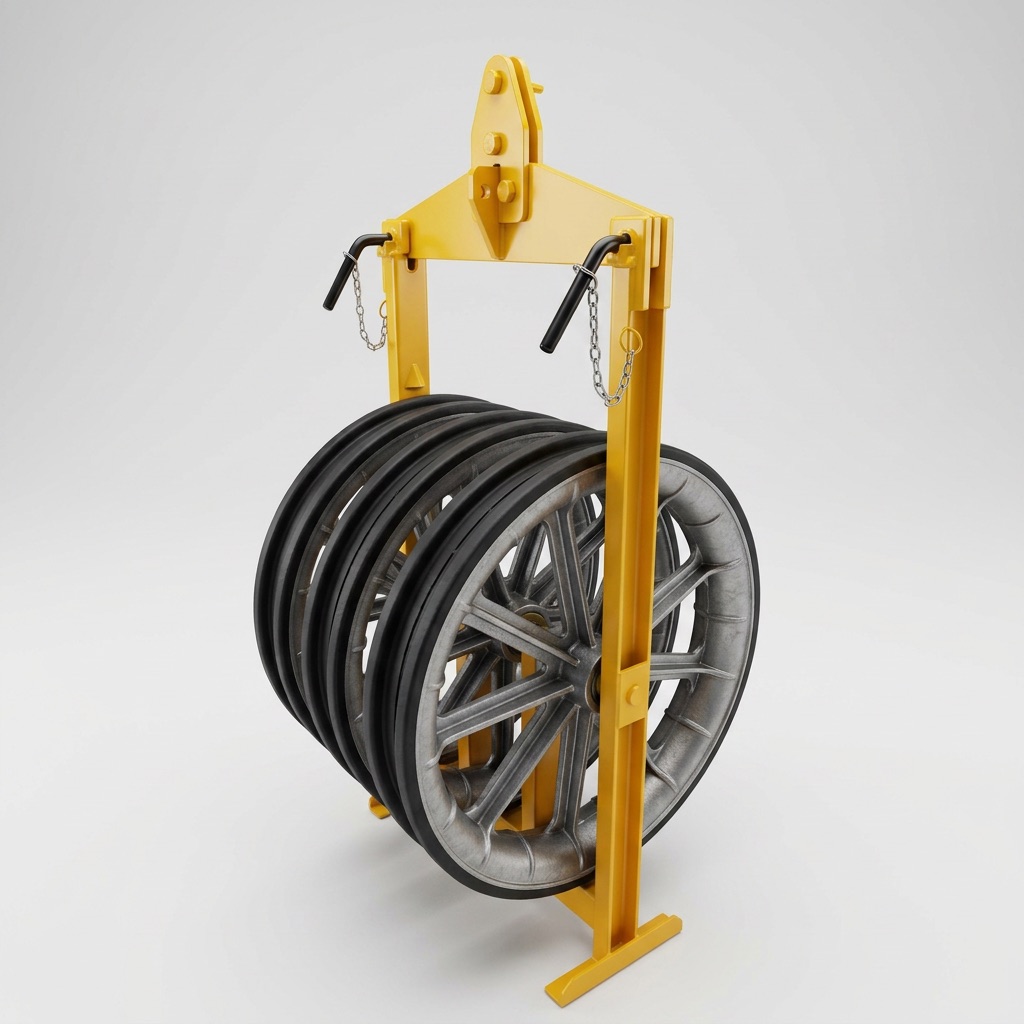

A durable, low-maintenance roller system with cast alloy sheaves, sealed bearings, and protective conductor grooves.
Compact and robust for efficient conductor guidance where simpler roller configurations are required.

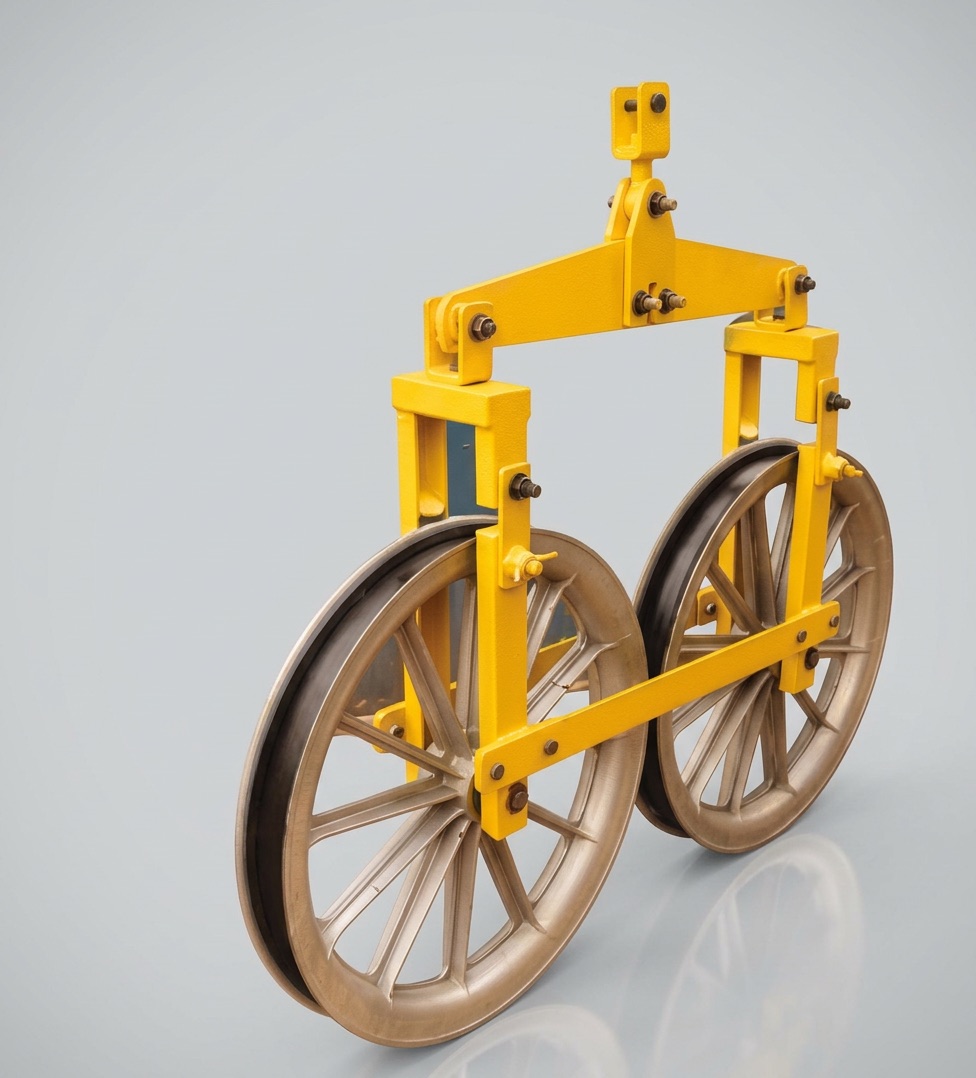

Engineered for stable support and smooth conductor movement across transmission stringing paths.

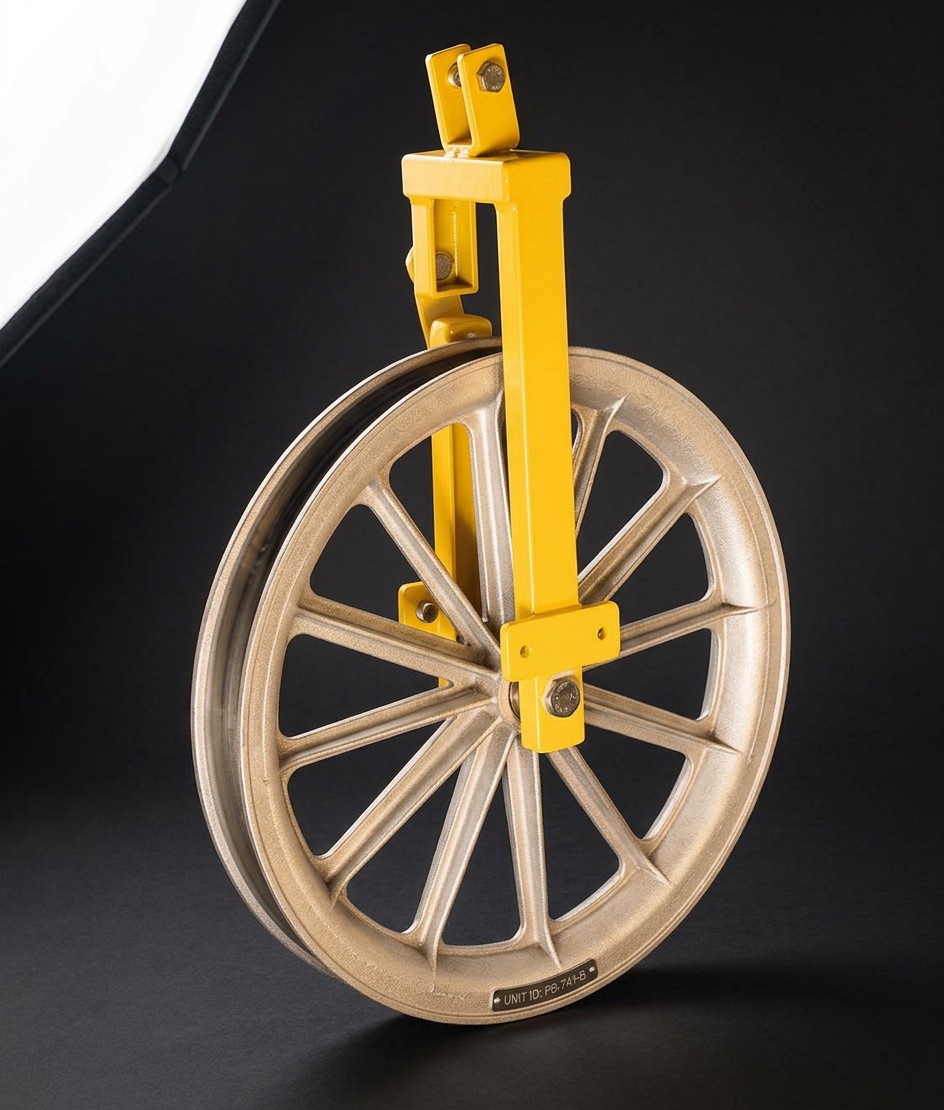

A field-ready single-roller option for focused support, easy handling, and dependable conductor protection.

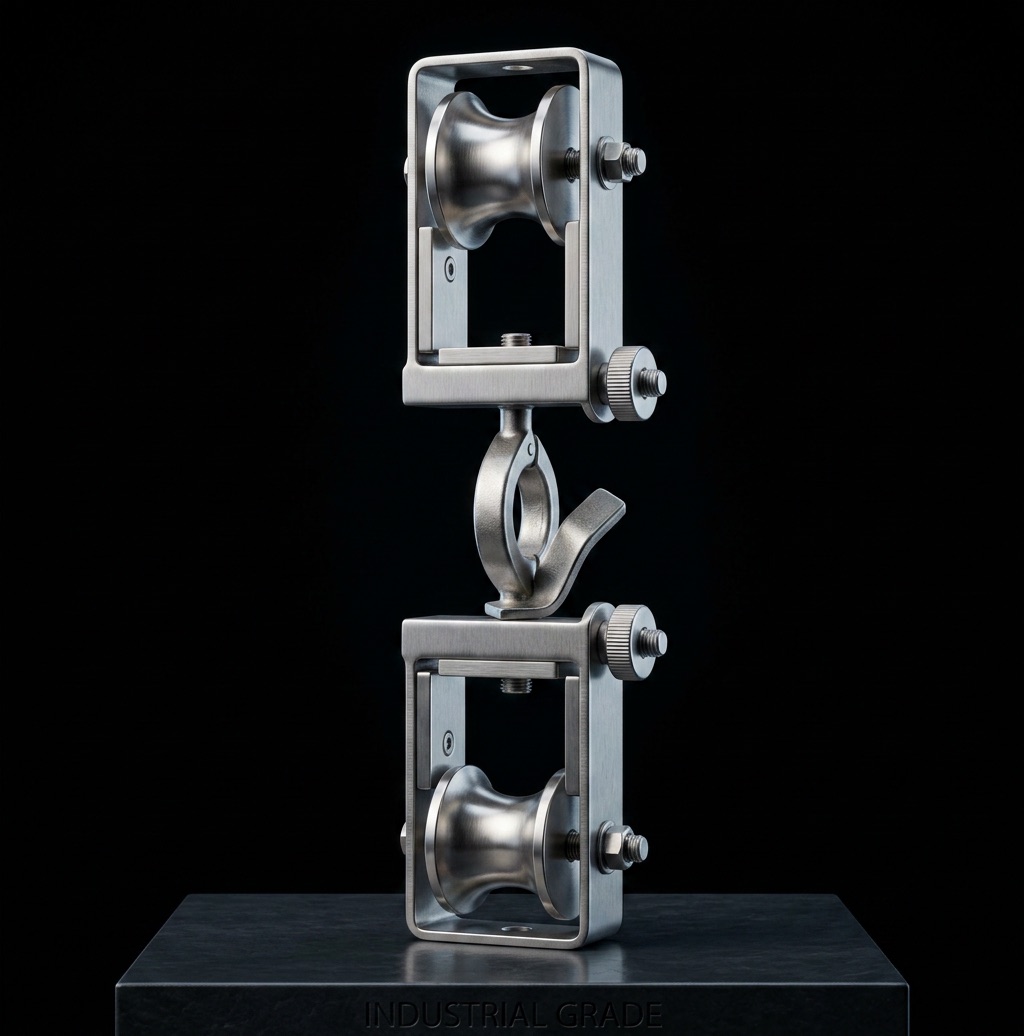

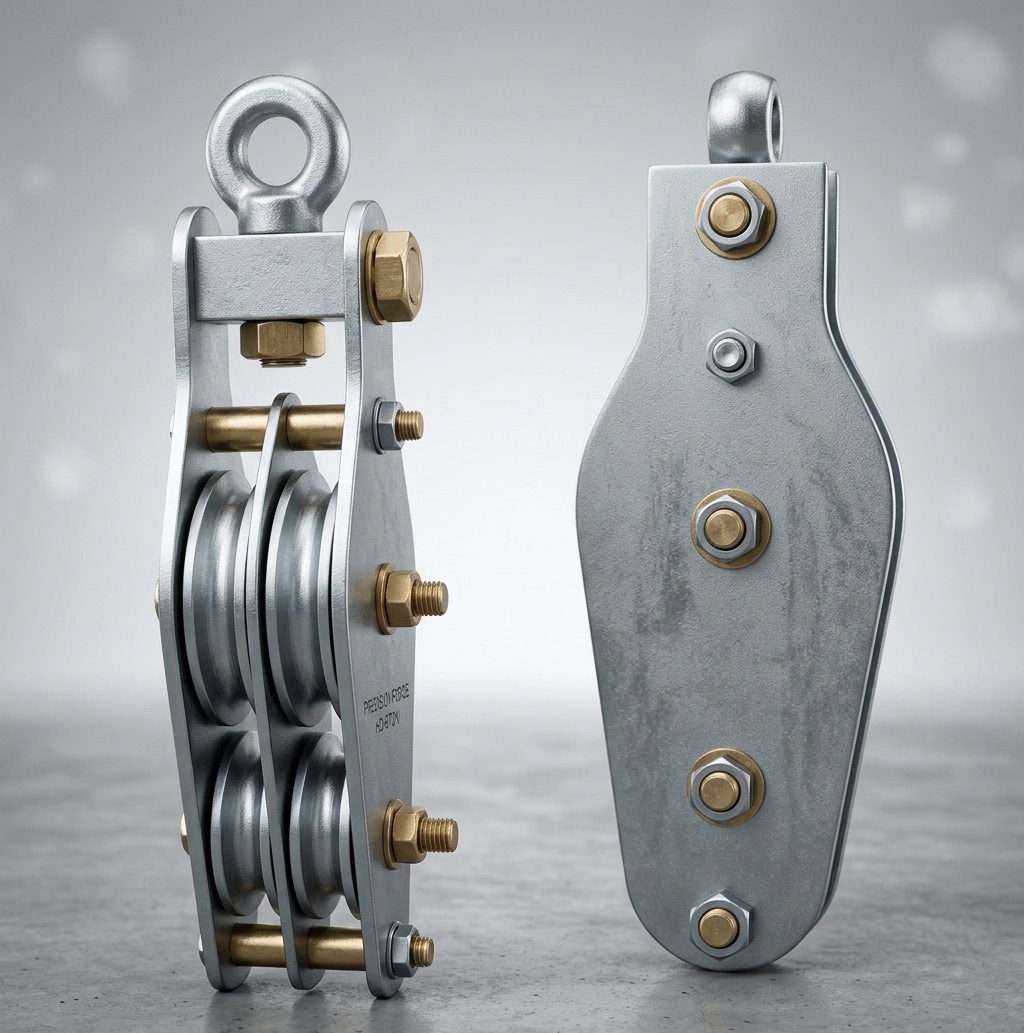

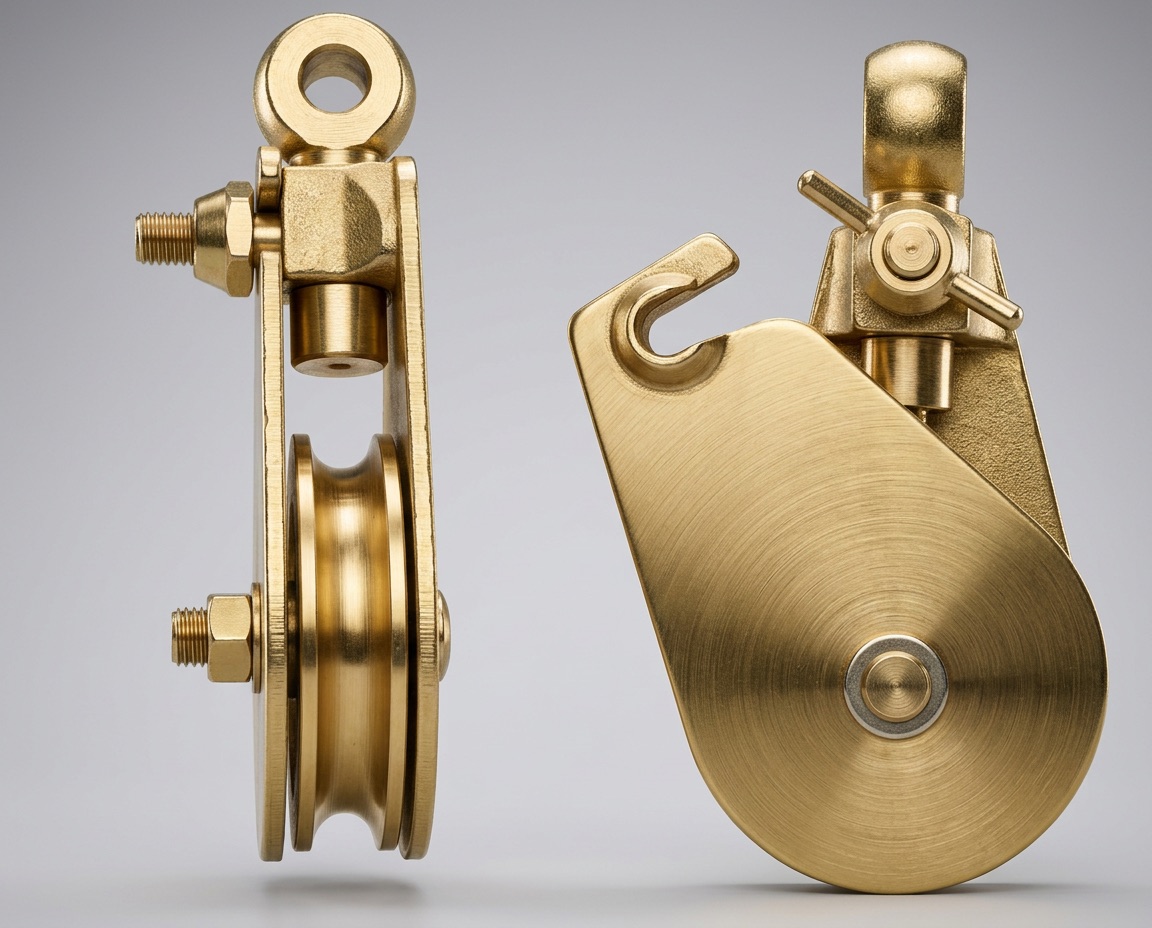

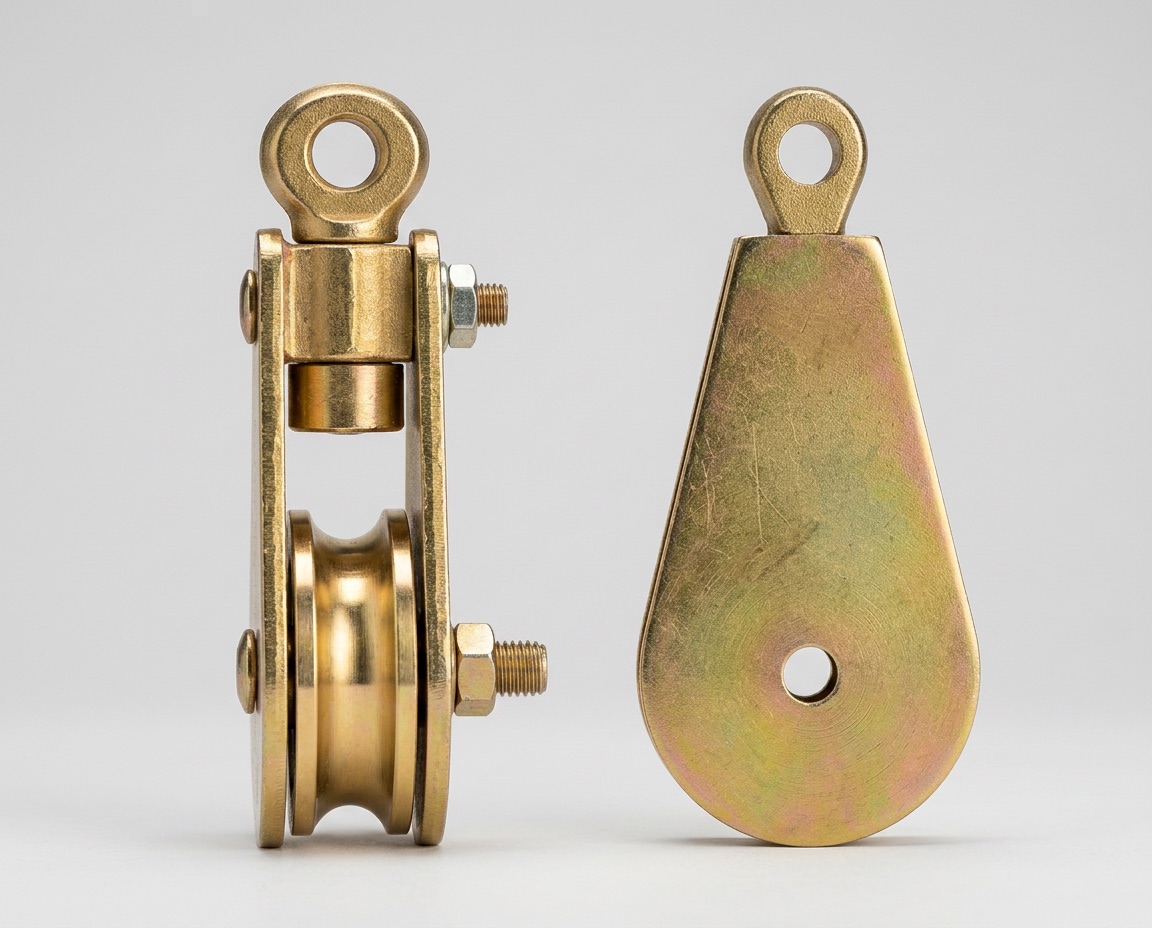

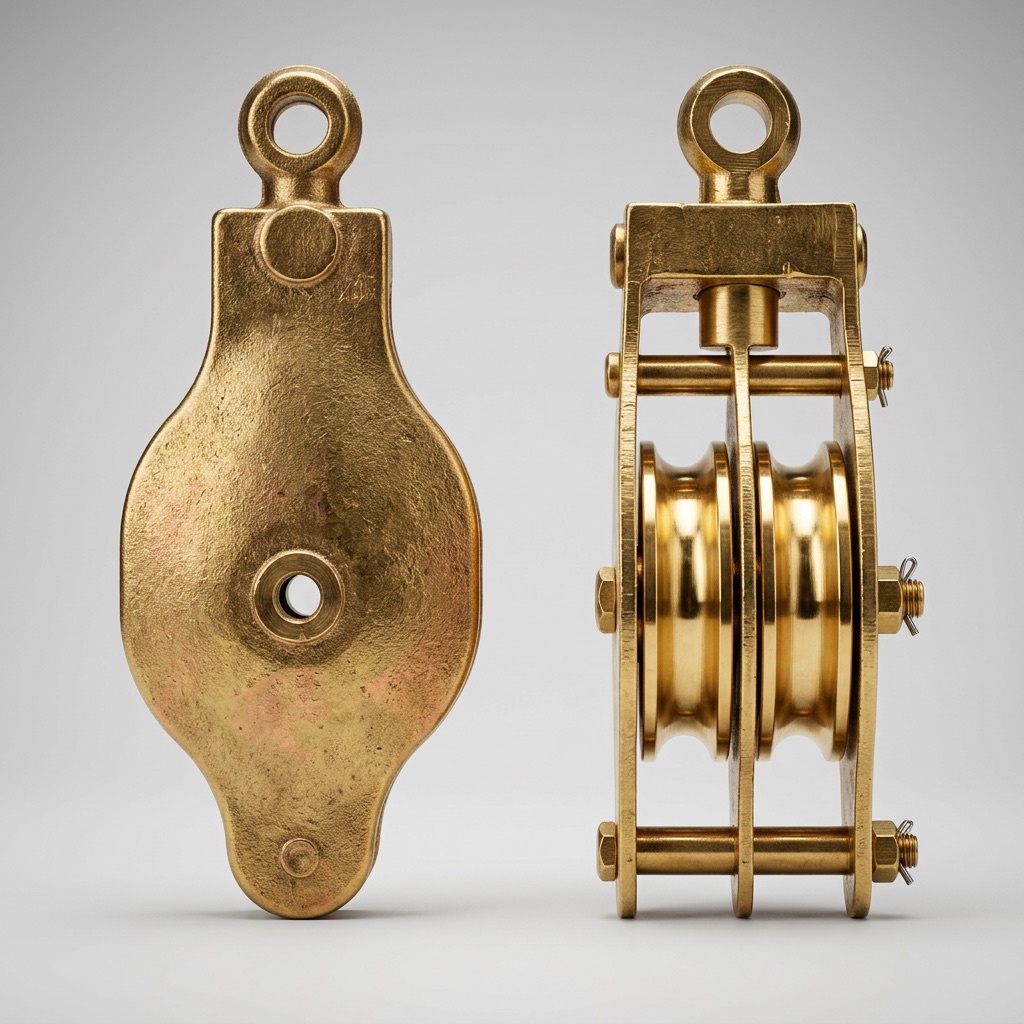

Clamping and Pulley Systems

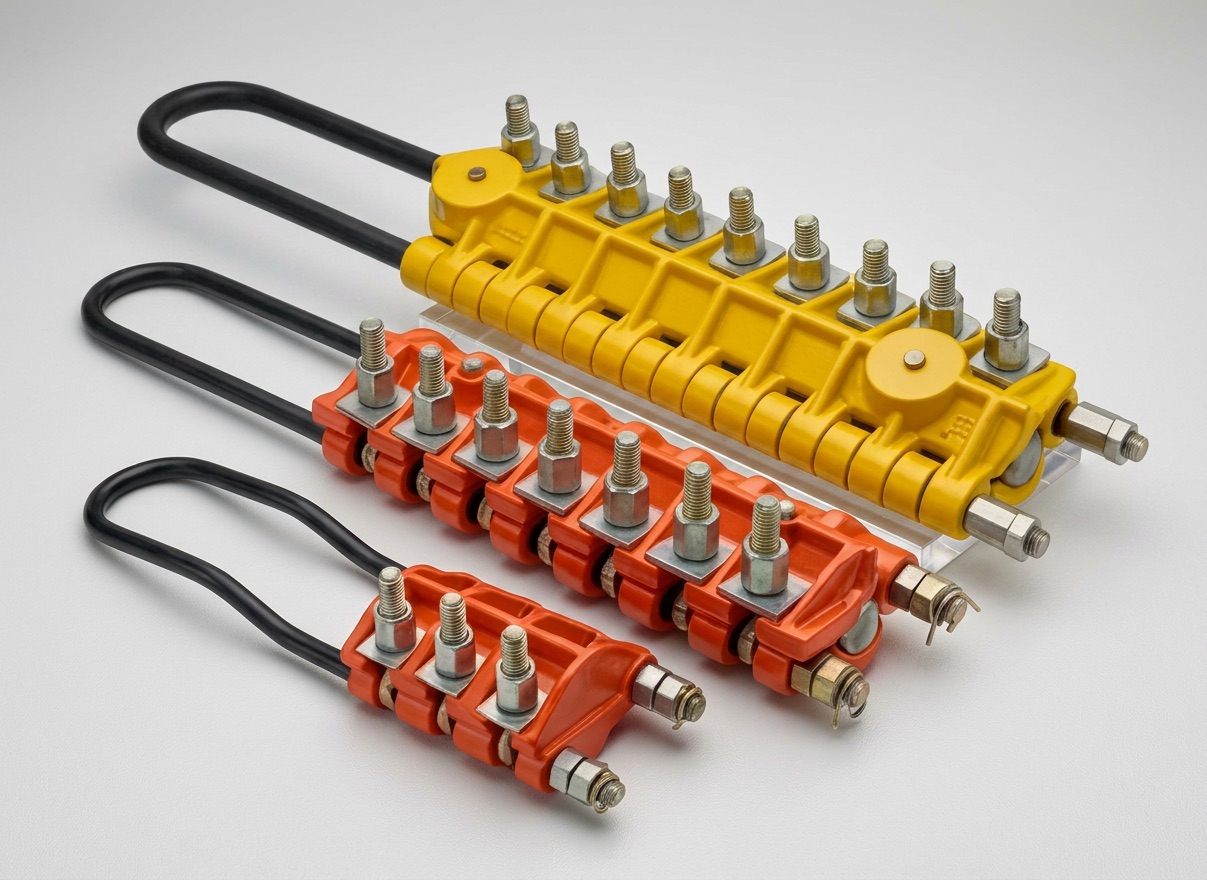

Manufactured for dependable gripping performance in stringing applications, with liner options and geometry suited for consistent conductor handling.

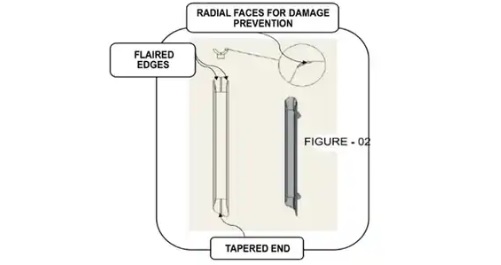

Matching liner support improves compatibility and helps protect conductor surfaces under working loads.
Head Boards

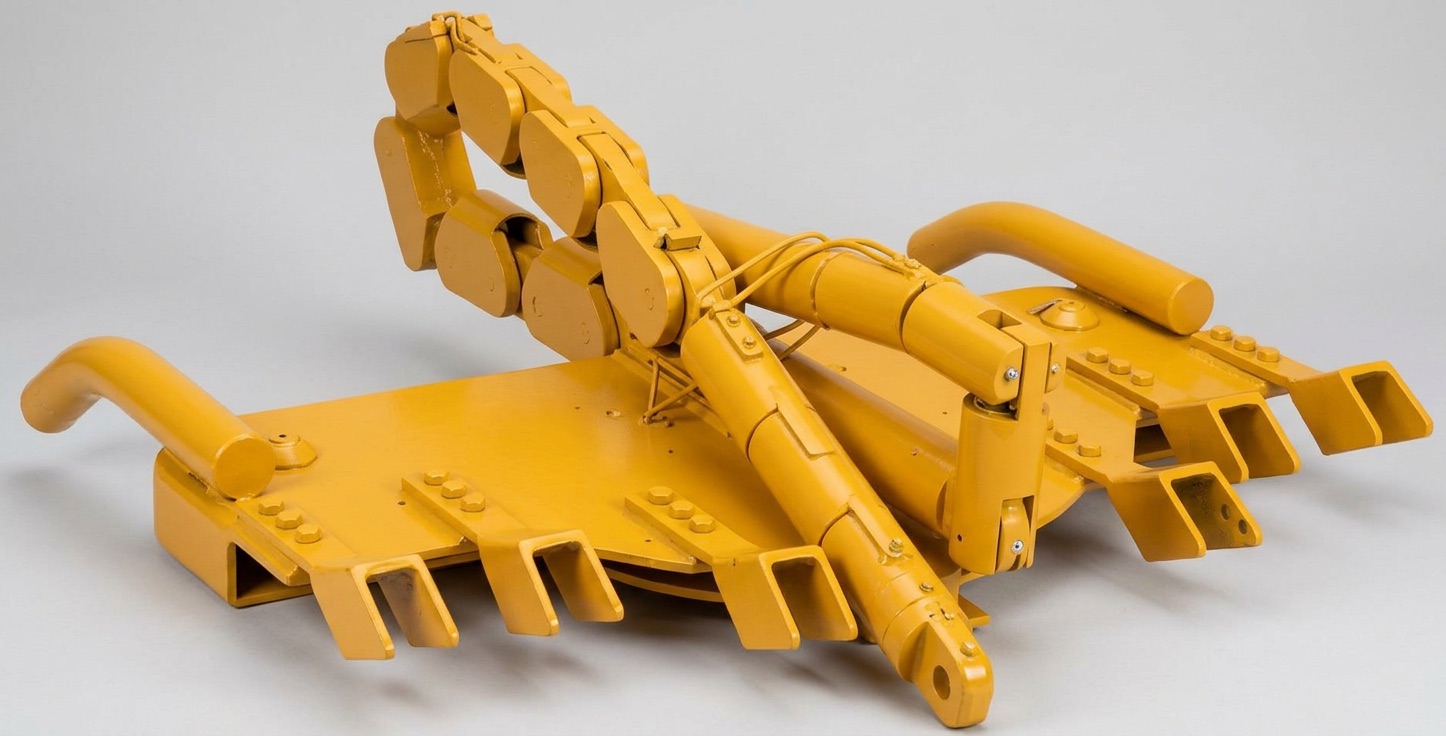

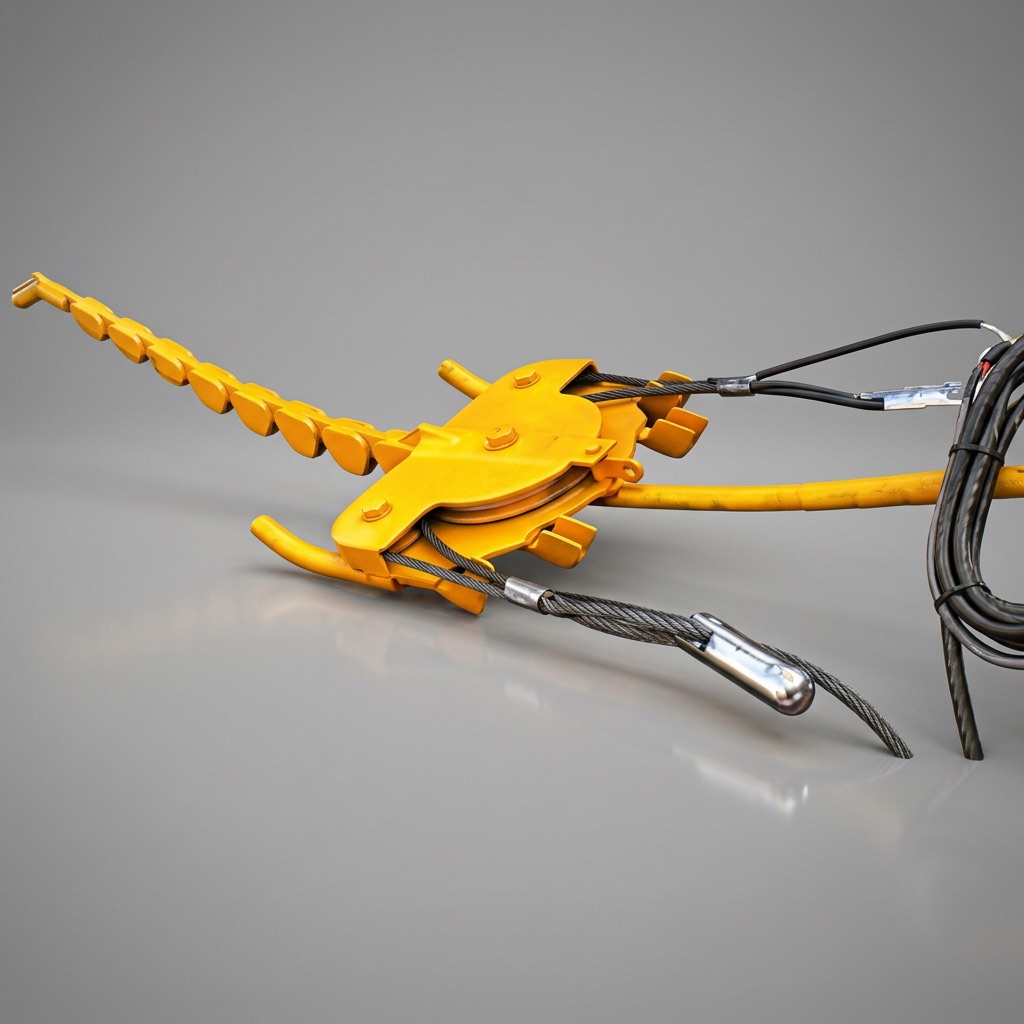

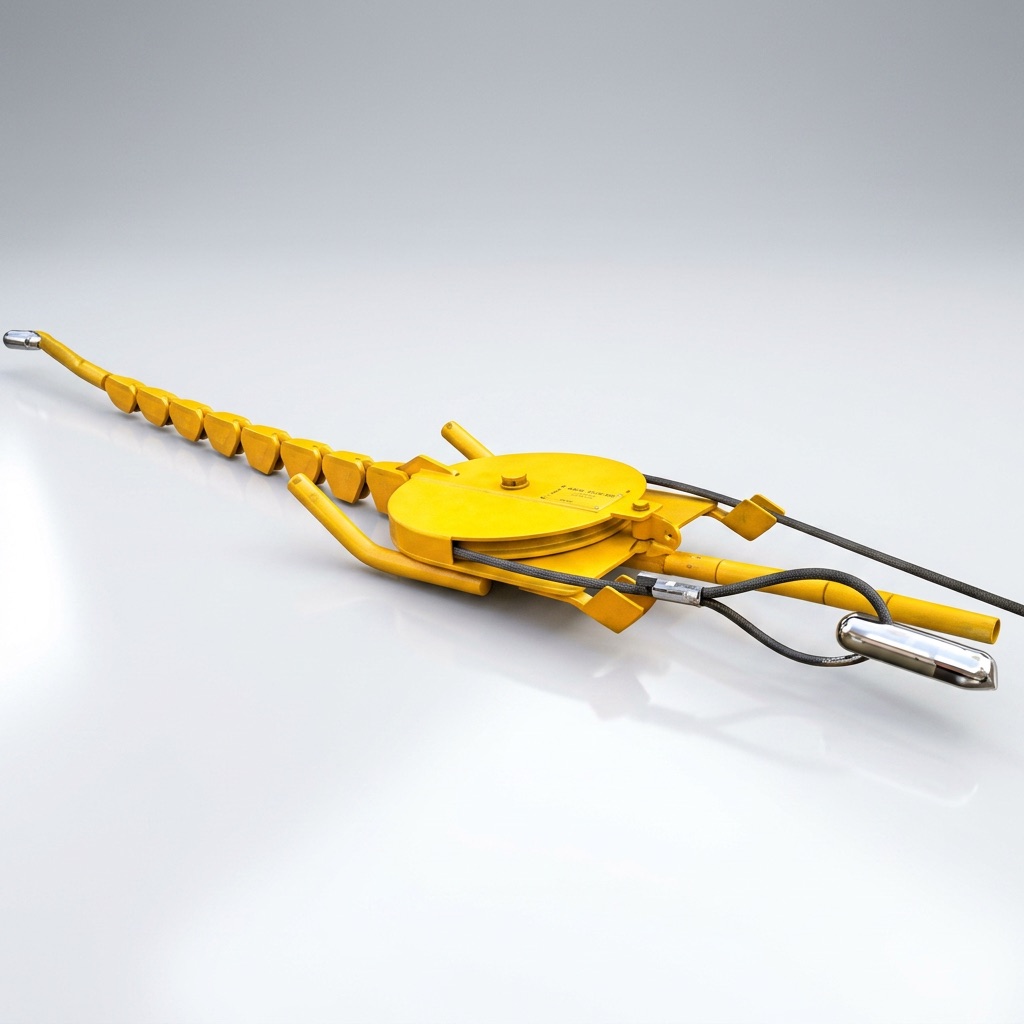

Specially designed to connect the pulling rope with six or seven bundled conductors for efficient and precise line work.
Reel Handling

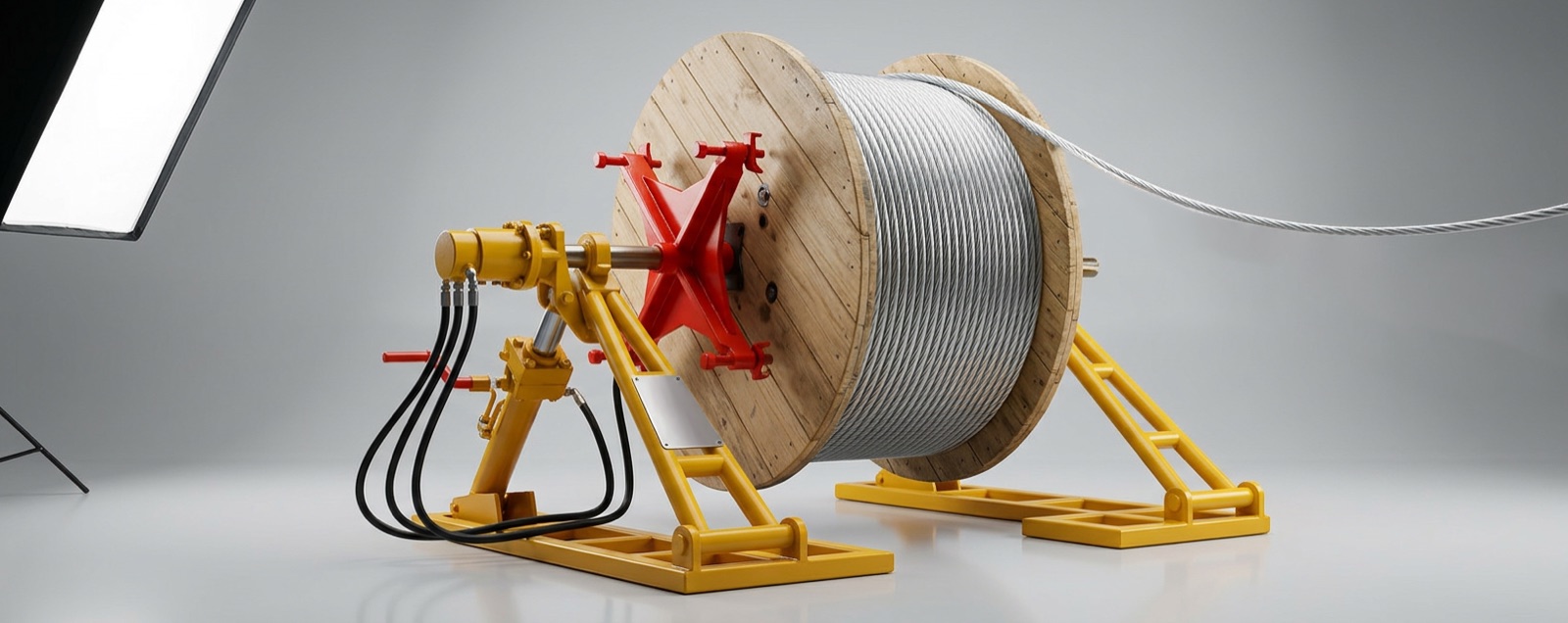

Ideal for paying out conductor, earth wire, and OPGW cables, the reel elevator is constructed in welded steel with protective coating. It uses fixed wedge supports to secure wooden or steel conductor drums and a mechanical disc braking system for precise control of rotational speed during payout. The detachable frame supports easier transport, while optional upgrades include an additional disc brake and hydraulic jack substitution.
Grip Systems

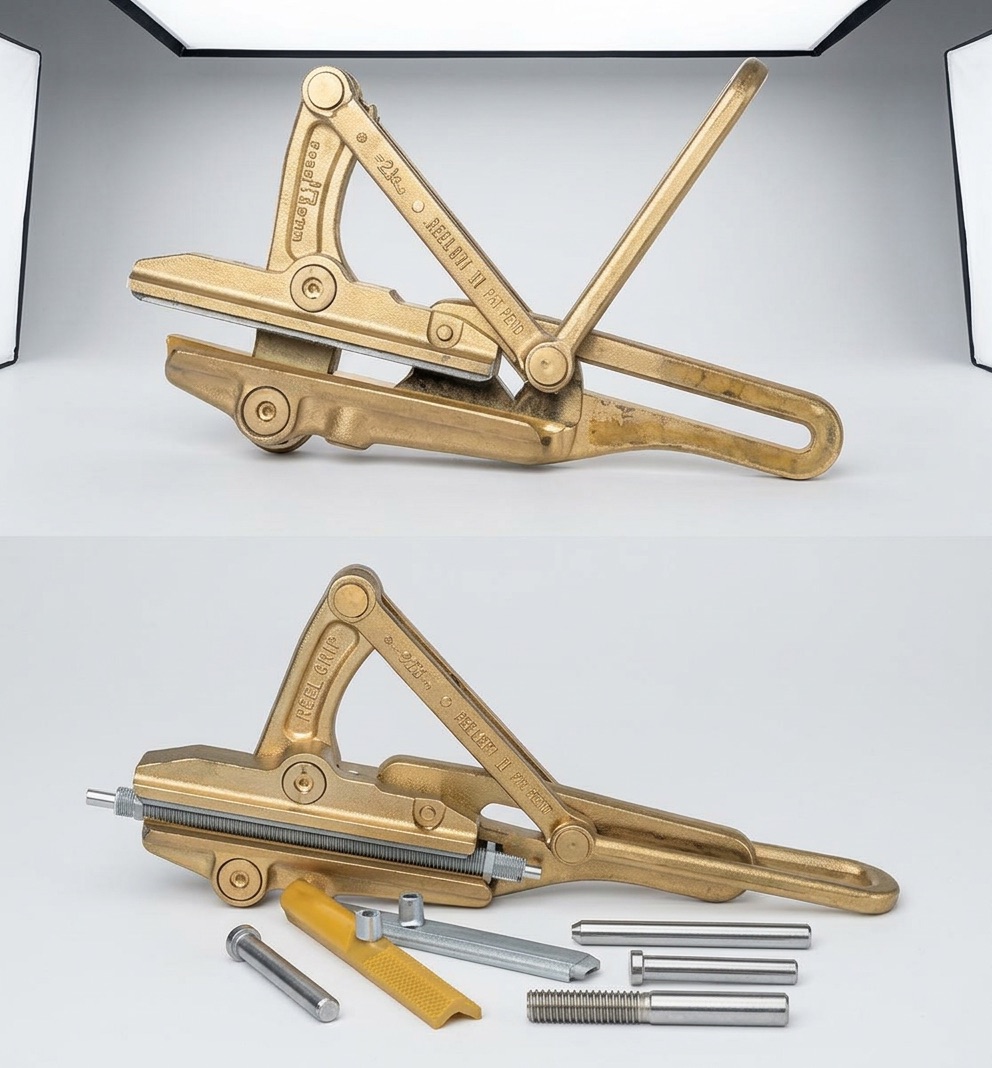

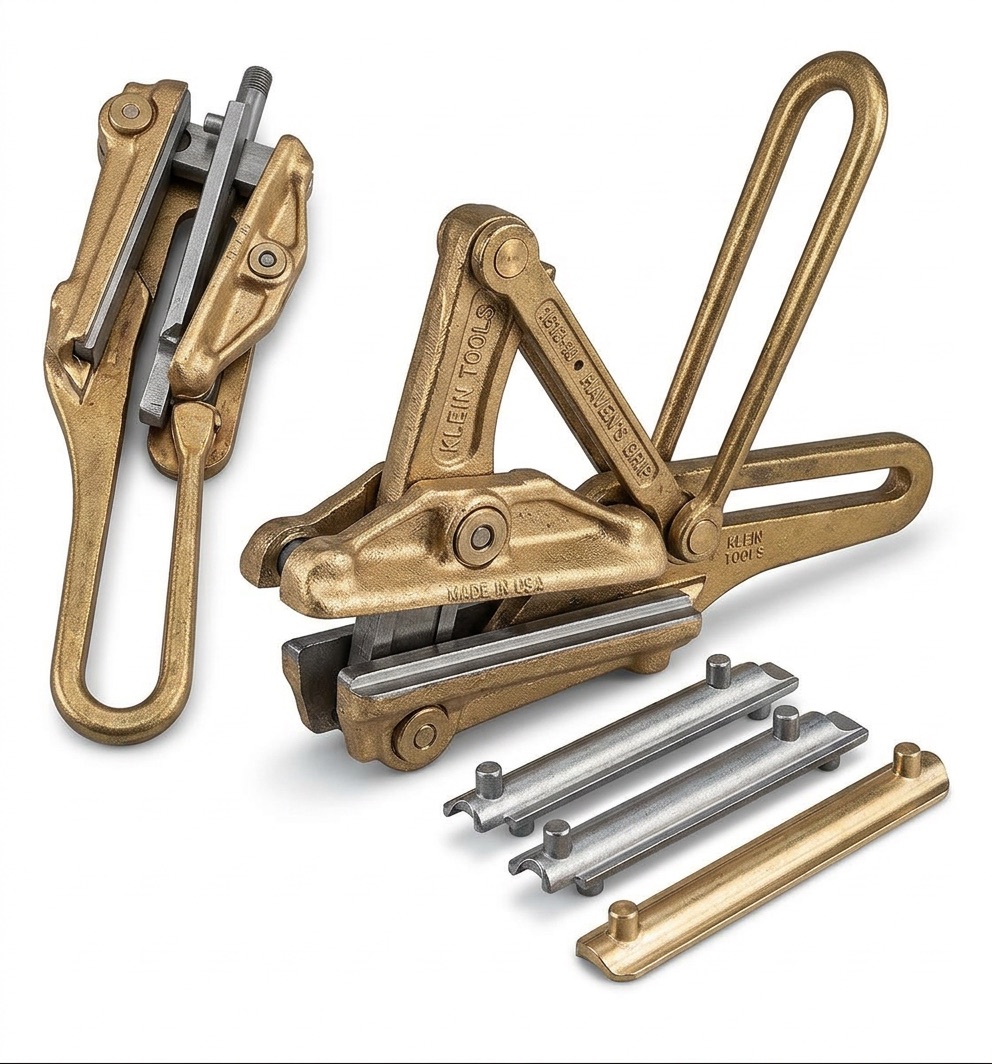

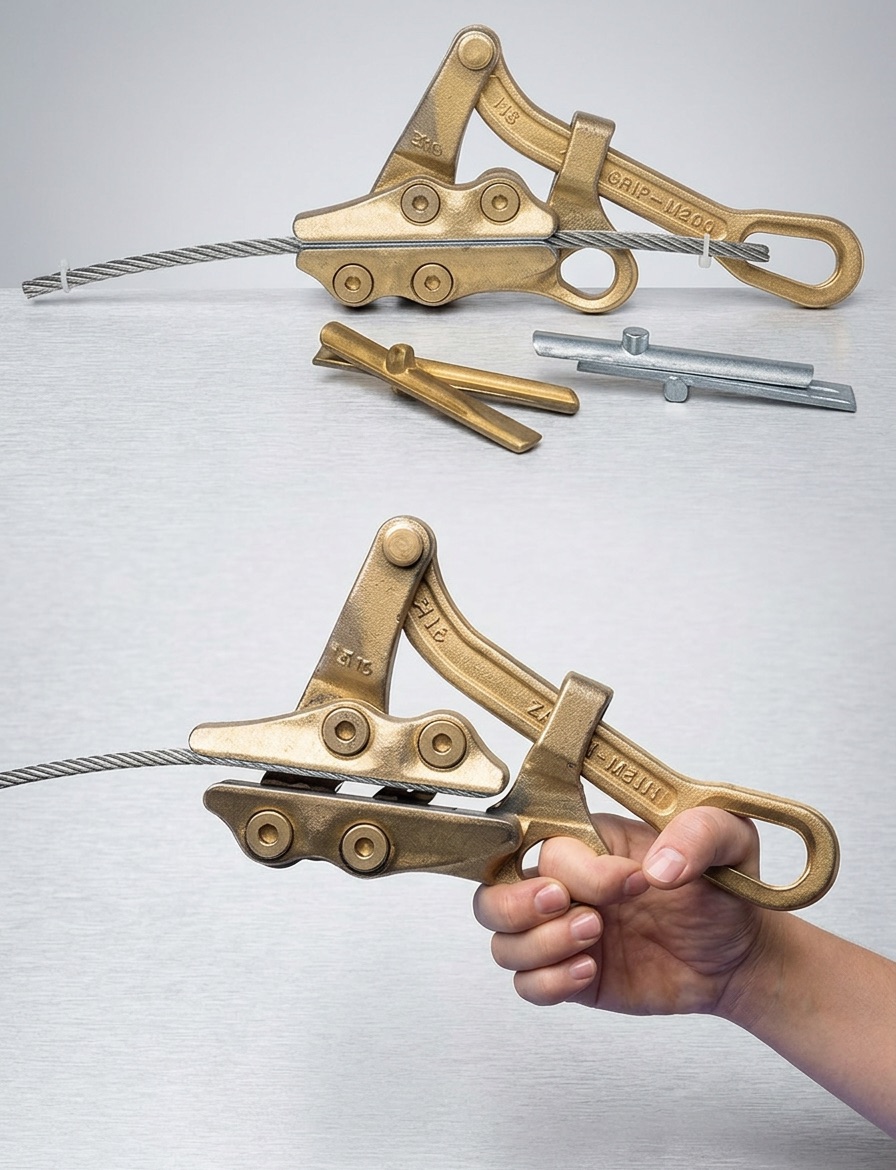

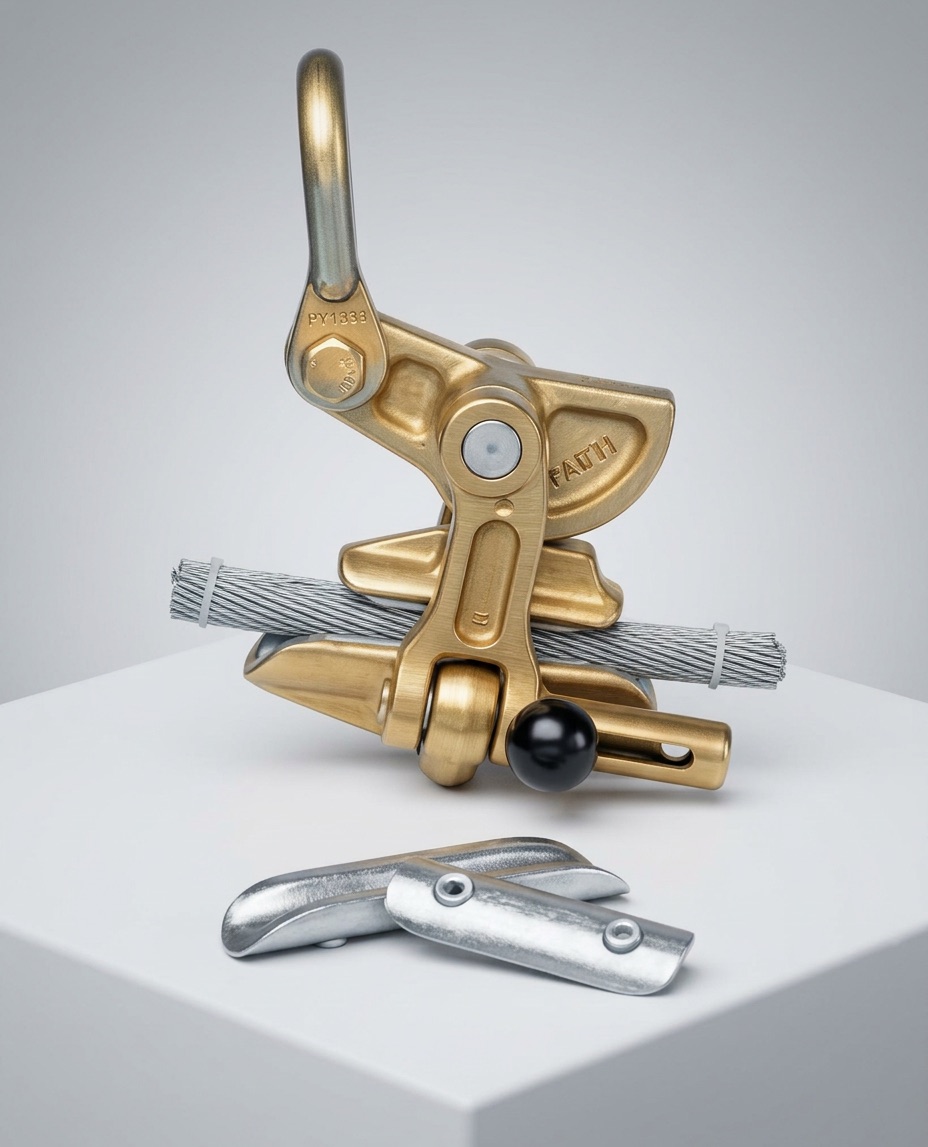

These self-gripping clamps are made from high tensile special alloy steel and are hot forged, heat treated, precision machined, and zinc plated. A wide range of interchangeable liners is available for ACSR, AAAC, HTLS, ACCC, anti-twisting rope, earth wire, and copper conductor applications. For ACCC and ACSS/TW conductors, round jaws are supplied for maximum contact and reliable grip.
More Products

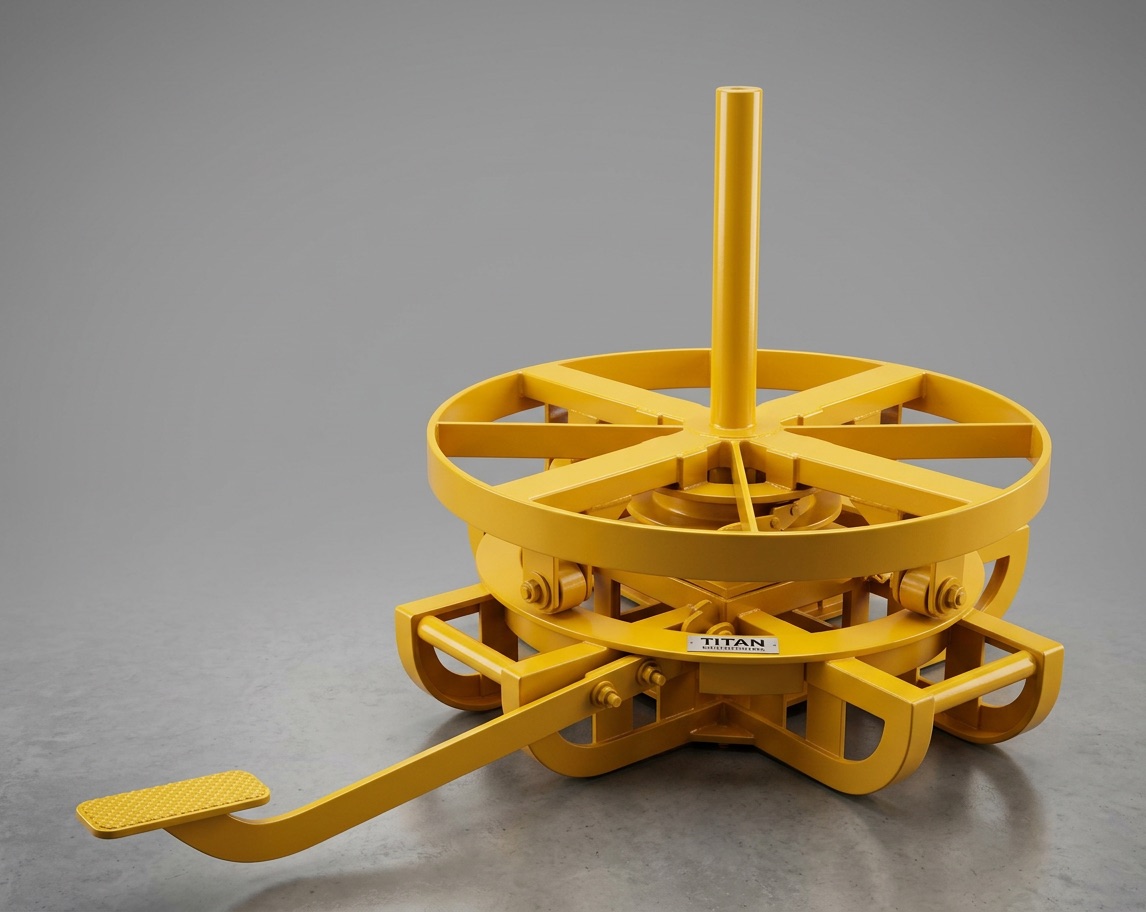

Crafted from welded steel with protective coating, turn tables support the smooth release of conductors during payout by holding the drum securely in upright position and integrating a braking arrangement for control.
A practical support structure for site operations, built to assist safer and steadier access during transmission line stringing work.

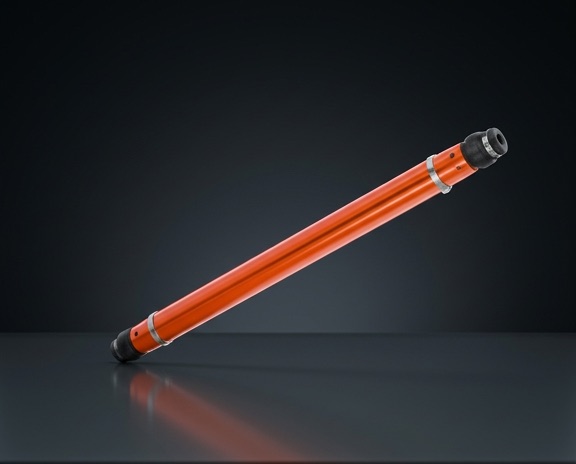

Engineered to safeguard mid-span joints created at the tensioner station, using shaped shells and conductor-specific support to protect compressed joints during movement.
Project Enquiry
Our team can help you select the right roller, clamp, headboard, and support equipment combination for your line configuration and field conditions.
Direct Enquiries
If you are evaluating rollers, clamps, headboards, reel handling, or site accessories, send us your requirement directly and we will help guide the right field-ready configuration.
